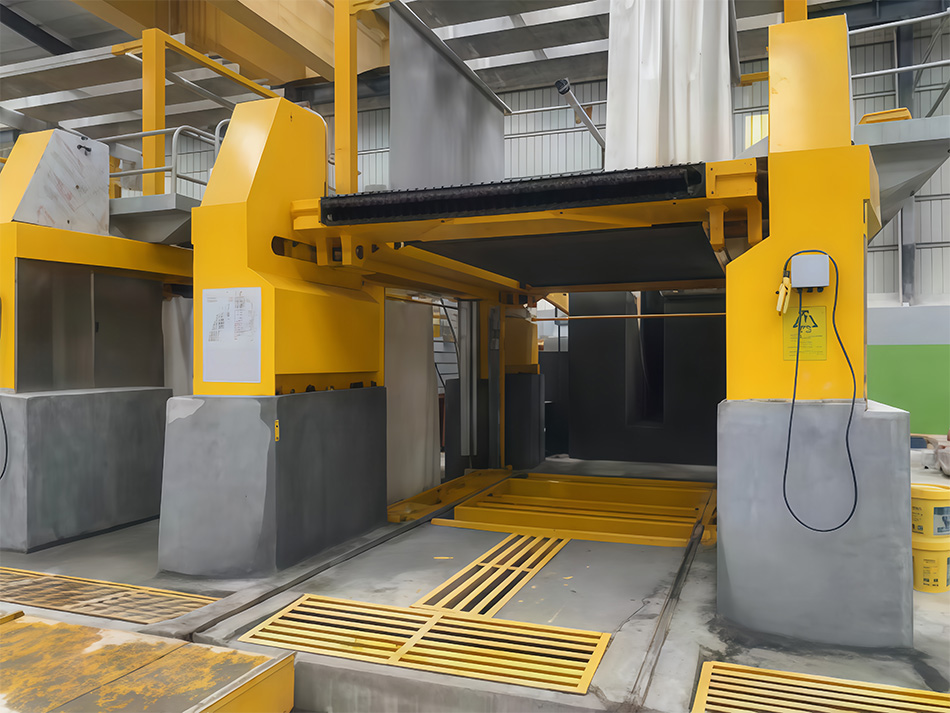

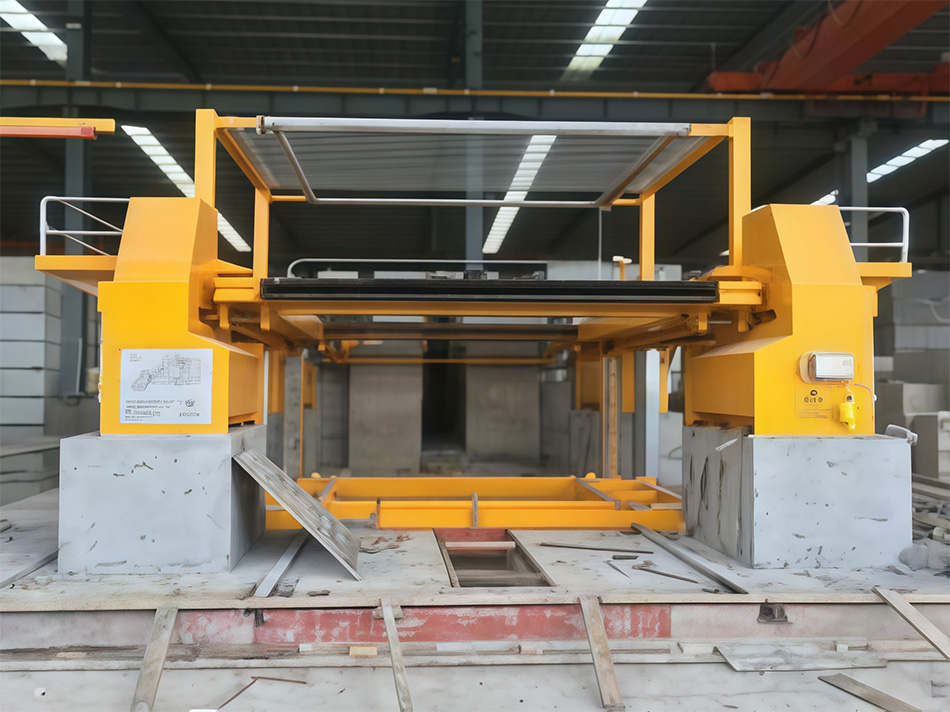

HKJJ Diamond Marble Gang Saw Machine

Code: HKJJ
  • Specifications
  • Related Products

This machine is suitable for cutting slabs of 14 mm thickness. Its blade holder frame improves cutting efficiency and processing quality. The guide rail adopts a full oil immersion lubrication design, which reduces operating resistance, saves power consumption and effectively extends the service life of the whole machine.

Technical Parameter

Max Cutting Block Size

3250×2000×2000mm

Thickness of slab

≥14mm

Main Motor Power

110kw/150hp

Auxiliary Motor Power

7.5kw/10hp

Sawing speed

8-32cm/h

Blade Stroke Length

800mm

Blade Model

4400×180mm

Water Consumption

10L/min/blade

Install Number of Saw Blades

≥80pcs

Tension Device of Blades

Machine Pressure

Cutting Speed

5-30cm/h

Overall Dimension

12425×5200×4960mm

Total Weight

≈52T

Spare Parts List

Block Trolley

2pcs（size:3200×2020mm；15kw；Load capacity: 30tons）

Transfer Car

1pc

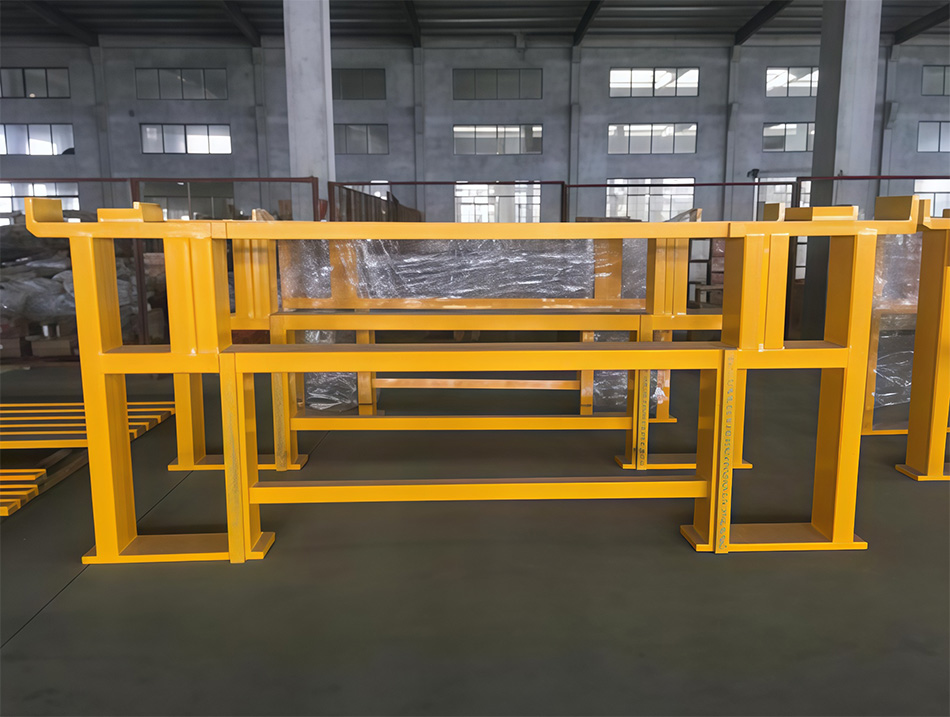

Blade Holder

80sets

Spacers

160pcs

Hydraulic Tensioner

1set

Trolley Rail Line

9meters（4.5m×2pcs）

Block Car Fasten Plate

2pcs
